P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF

Product Categories
Shenzhen Xmedia Technology Co.,Ltd
Contact Now

P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF

  • 1
  • 2
  • 3

Brand Name : X-media

Model Number : P25

Certification : CE/RoHS/ISO/CB/SASO/TUV/FCC/UL

Place of Origin : China,Shenzhen

MOQ : 5sq.m

Price : Negotiation

Payment Terms : T/T, MoneyGram,Cash

Supply Ability : 5,000sq.m/month

Delivery Time : 8~10 working days

Packaging Details : Flight case, wooden case and carton box and foam package

Product name : LED curtain screen

Cabinet material : Aluminum

Module size : 1000X500mm

Screen size : Customized design

Brightness : 7000cd/sqm

Warranty : 5 years

Life time : 100,000H

MTBF : 10,000H

Contact Now

The Surface Of Building Facade P25 Outdoor Led Curtain Screen

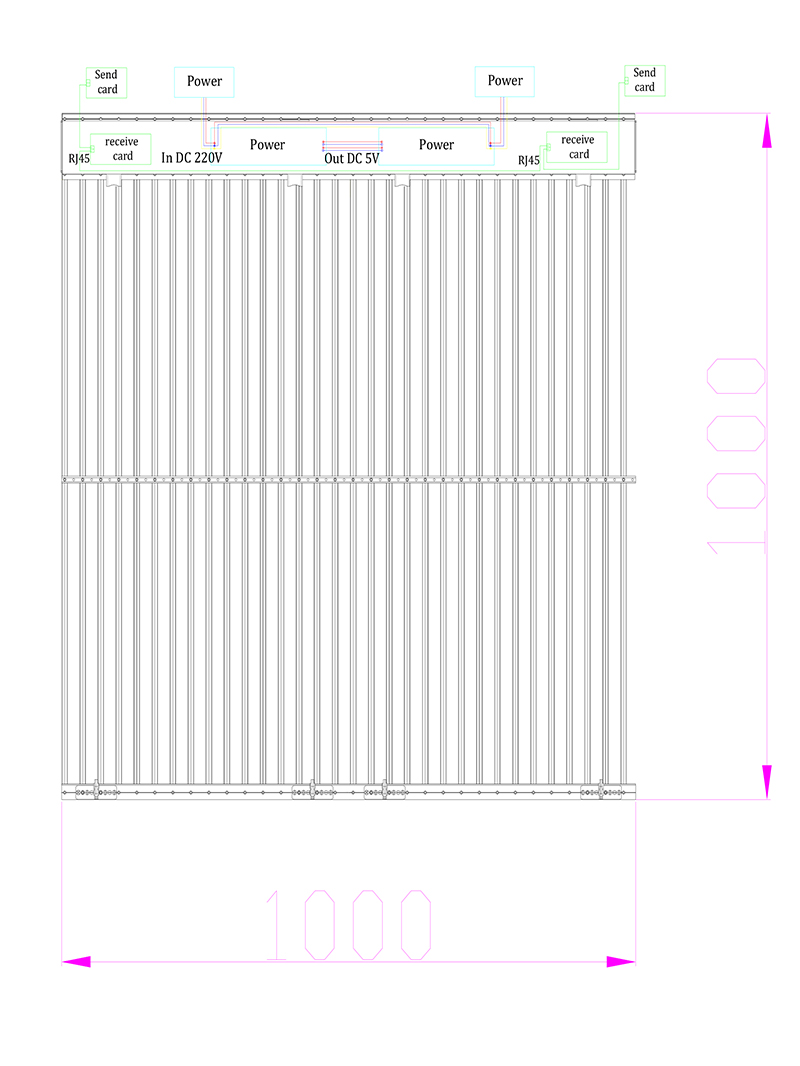

Never black Screen
2pcs power supply
2pcs receing cards
2pcs sending cards
2pcs RJ45 network cables.
Control system has dual backup.
If one set of control system has problems. The whole led screen can not be affected.
Because other one set of control system will replace it to continue work.

P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF
P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF

P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF

Specification
Led
DIP346
Horizontal Spacing
15.625mm
25mm
25mm
31.25mm
31.25mm
50mm
Vertical Spacing
15.625mm
15.625mm
25mm
15.625mm
31.25mm
25mm
Resolution
4096dots/m2
2560dots/m2
1600dots/m2
2048dots/m2
1024dots/m2
800dots/m2
Gray Scale
16 bit
Brightness
8500nits
8000nits
7500nits
7500nits
7000nits
7000nits
Best Viewing Distance
15-300m
20-400m
25-500m
30-500m
30-600m
40-700m
Max Power Consumption
400w/m2
Average Power Consumption
140w/m2
Weight
18kg/m2
16kg/m2
12kg/m2
11kg/m2
10kg/m2
8kg/m2
Thickness
6cm
Protection Level
IP65
Display Mode
1920*1080

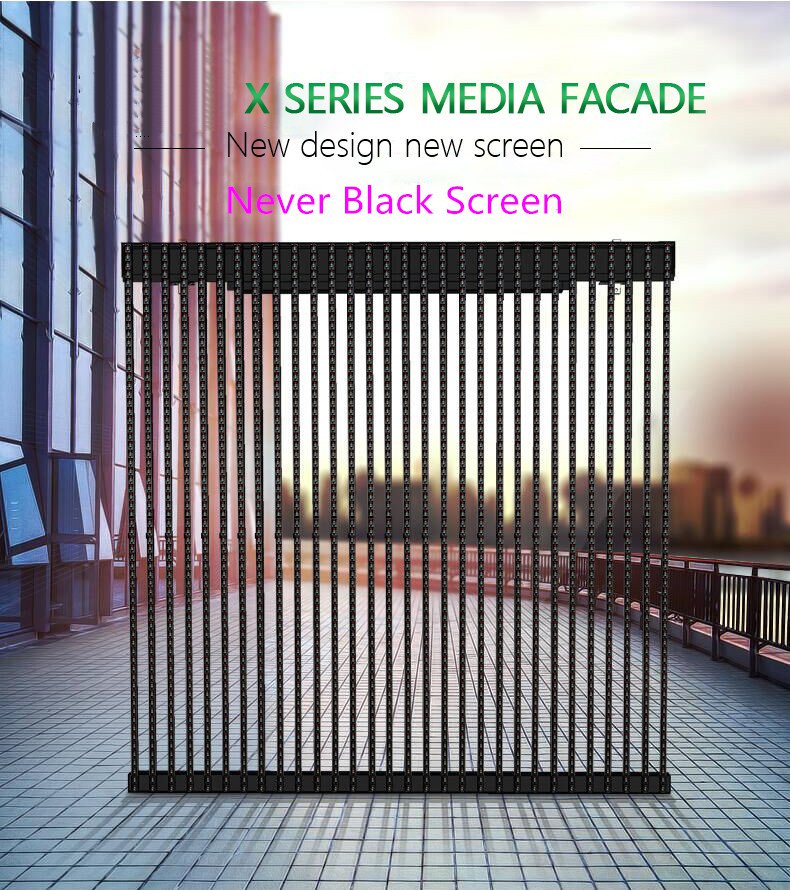

X-Media series Media Facade New dual backp design led screen

P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF



Outdoor Mesh Led Display:

High protection of cabinet design with flexible shape.
Super light, super thin, super high transparency,high intensity item and easy maintenance

P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF

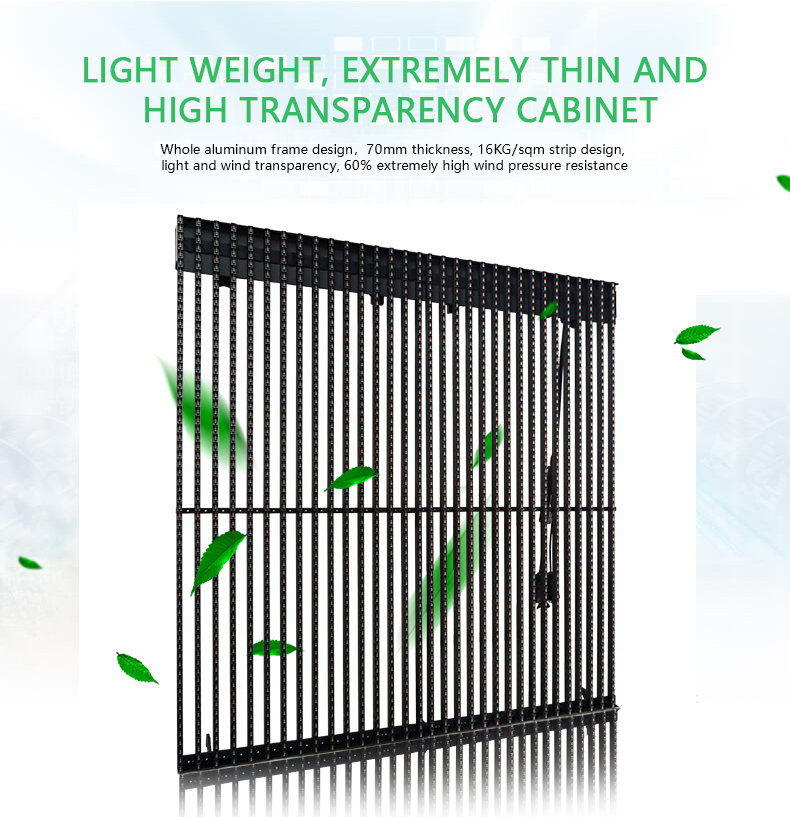

Light weight, extremely thin and high transparent cabinet:
Whole aluminum frame design, 70mm thickness, 16kg/sqm strip design, light and wind transparency, 60% extremely high wind pressure resistance
P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF


Higher 7000cd/sqm brightness
Fast installatin and easy front service
P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF

Ingress Protection IP65 Dustproof and Stormproof
P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF

High protections of high temperature, low temperature, lightning and corresion
P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF

P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF

Product package:
1pcs 1000x1000mm cabinet in one carton.
10pcs cartons in one wooden case.
10pcs frames in one wooden case.
Wooden case material is not wood, it does not need to be fumigated.
So it is very suitable used in import and export
P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF

P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF

FAQ

Q1: What does the dual backup means?
A1: The dual backup means if one set of control system can not work. Then other set of control can replace it to continue work. It will not affect whole led screen working situation.

Q2: Can its brightness can be higher?
A2: Yes. Of course, here is a solution to make the whole brightness to be 10000nits.

Q3: How long for the warranty? Can the warranty be longer?
A3: On usual, warranty is 5 years. Of course,according to customers' requirements, the warranty can be longer such as 5 years.

Q4: Except the whole screen and its accessories, what I need to prepare by myself?
A4: Power box, computer, external power cable, external network cable.

Q5: Can this transparent led screen has energy saving advantage?
A5: Yes. Of course, the energy saving is one of its important advantage. It can save a lots of power. In some degree, it can also save a lots of costs in electricity
