P8.3 Outdoor Curtain LED Display, SMD Waterproof Building Mesh Led Screen
Features:
1. High transparency;
2. Ultra light and slim;
3. Front & back maintenance;
4. Smart lock system,easy installation;
5. Curve cabinet available;
6. High brightness;
7. Apply to both outdoor fixed and rental projects.
Product Description
| Item | Outdoor P8.3-12.5 | Outdoor P16-16 | Outdoor P31.25-31.25 | Outdoor P50-50 |
| Pixel Pitch | 8.3-12.5mm | 16-16mm | 31.25-31.25mm | 50-50mm |
| Cabinet size | 1000*500mm |
| Transparency | 55%-80% |
| Pixel density | 9600dots/sqm | 3906dots/sqm | 1024dots/sqm | 400dots/sqm |
| Cabinet Weight | 15kg/sqm |
| Average power | <=300w/sqm |
| Max consumption | <=800w/sqm |
| Refresh rate | ≥OR 3840HZ |
| Working temperature | -30ºC~65ºC |
| Brightness | ≥6500cd/m2 |
| Life span | 100000h |
| Viewing angle | 160° |
| IP rating(Front/Rear) | IP65 |
| Input Voltage | AC220V/50Hz or AC110V/60Hz |
Power Consumption
(Max. / Ave.) | 400/200 W/m2 |
| Warranty | 5 years |
Our service
Warranty
1. We guarantee all our display, modules, spare parts for 5 years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3. After warranty, we also can offer you the parts for replacement at our bottom price.
4. After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5. We also could solve problems for you antil it recovers well by remote control!
Installation
1. We can assist the training and technical support for the customer in the factory, if the customer require so.
2. We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3. Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need

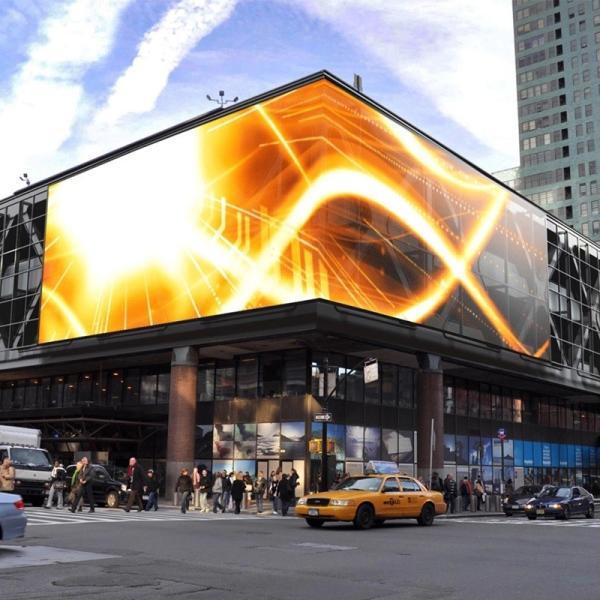

Curtain display type
Why is Curtain display
1. Low wind resist, construction simple
2. Light, construction is simple and thin
3. Full color, Using flexible.
4. Project is small cost is low.
5. Light and wind can go in side of building.
Application
Trade Terms
MOQ: 5 sq.m. Outdoor LED Display
Payment: T/T or according to your requirements.
Payment Term: FOB, EXW or according to your requirements.
Packing: Wooden case, cartons, flight case or according to your requirements.
Shipping: By air, by sea, by land, by express or according to your requirements.
Delivery Time: 8~10 working days.
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing:
1, Dimension ( Width and Height)
2, Location of installation ( picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
