IP65 P8.3 LED Mesh Screen High Transparency Aluminum Cabinet

Name: IP65 P83 LED Mesh Screen High Transparency Aluminum Cabinet
Brand: X-media
Price: 1 USD

Buy cheap IP65 P8.3 LED Mesh Screen High Transparency Aluminum Cabinet product

Brand Name : X-media

Model Number : P8.3

Certification : CE/RoHS/ISO/CB/SASO/TUV/FCC/UL

Place of Origin : China,Shenzhen

MOQ : 5sq.m

Price : Negotiation

Payment Terms : T/T, MoneyGram,Cash

Supply Ability : 5,000sq.m/month

Delivery Time : 8~10 working days

Packaging Details : Flight case, wooden case and carton box and foam package

Product name : LED mesh screen

Cabinet material : Aluminum

Module size : 1000X500mm

Screen size : Customized design

Brightness : 7000cd

Warranty : 5 years

Life time : 100,000H

MTBF : 10,000H

Contact Now

Outdoor P8.3 LED Mesh Screen SMD Waterproof IP65 Facade Of Building Nation Star

Features:

1. High transparency;

2. Ultra light and slim;

3. Front & back maintenance;

4. Smart lock system, easy installation;

5. Curve cabinet available;

6. High brightness;

7. Apply to both outdoor fixed and rental projects

Product Description

Product	P10.42	P15.6	P15.6(DIP)
Pitch	10.42mm	15.6mm	15.6mm
Density(pixels/m²)	9216	4096	4096
LED Type	SMD3535	SMD3535	DIP346
Brightness	6000nits	6000nits	8000nits
Scan Method	1/3	Static	Static
Cabinet Size	500*1000mm
Module Size	250*500mm
Cabinet Material	Diecasting Aluminum
Cabinet Weight	9.5KG		11KG
Protection Level	IP65
Cabinet Maintenance	Front&Rear Service
Transparency	20%	30%	25%
Max Power Consumption	800w/m²	800w/m²	600w/m²
Average Power Consumption	280w/m²	280w/m²	200w/m²
Refresh Rate(Hz)	2880-3840HZ
Grey Scale	16 bit
Viewing Angle	H140°,V140°	H140°,V140°	H140°,V70°
Voltage	AC100-240V(50-63HZ)
Working Temperature	-30°C -+65°C
Working Humidity	10%-90%RH
Color Temperature	6000-9500K
Certifications	EMC/CE/RHOS/CCC/FCC/ISO
Available Pixels	P15.6-25 and P15.6-31.25 cabinet size: 1m*1m

Curtain display type

IP65 P8.3 LED Mesh Screen High Transparency Aluminum Cabinet

Why is Curtain display

1. Low wind resist, construction simple

2. Light, construction is simple and thin

3. Full color, Using flexible.

4. Project is small cost is low.

5. Light and wind can go in side of building.

IP65 P8.3 LED Mesh Screen High Transparency Aluminum Cabinet

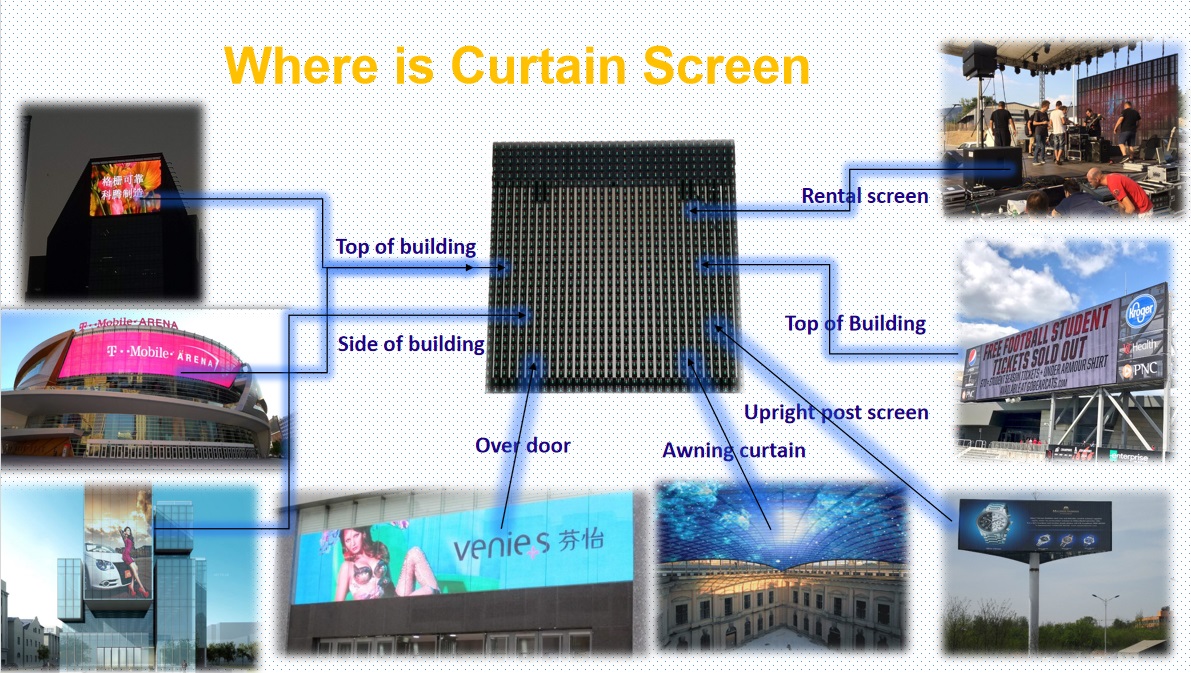

Application

Buy guides

 In order to save you time avoid no necessary troubles, please follow the steps bellowing:
 1, Dimension ( Width and Height)
 2, Location of installation ( picture is best)
 3, Purpose. ( what are you going to do with the LED Curtain)
 4, Star effect or video effect which you need.
